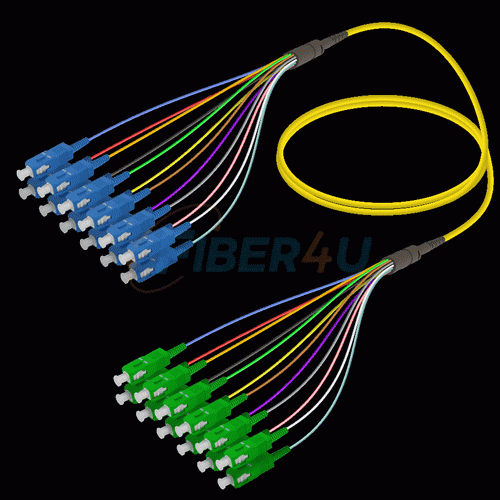

Fanout Cable SC/UPC-SC/APC 12 SM – 3.0/0.9 mm
Fanout Cable SC/UPC-SC/APC 12 SM – 3.0/0.9 mm — fibre optic fanout cable. Routes the stated number of optical fibres to individual connectorised legs. Connector ends and trunk/breakout diameters identify this configuration; other available configurations are separate products.
Product specifications
| SKU | FO-FP-10120 |
|---|
| Fibre type | Single Mode (SM) |
|---|
| Fibre count | 12 |
|---|
| Connector | SC/UPC – SC/APC |
|---|
| End connections | SC/UPC – SC/APC |
|---|
| Trunk cable / fanout tube diameter | 3.0 / 0.9 mm |
|---|
| Brand | SAMM / Country of manufacture: Turkey |
|---|
| Insertion loss | ≤ 0.30 dB (IEC 61300-3-4-Method-B) |
|---|
| Return loss | ≥ 50 dB (UPC), ≥ 60 dB (APC) (IEC 61300-3-6-Method-B) |
|---|
| Operating temperature | -40°C to +85°C |
|---|
Additional technical details
Source-series details may include optional variants. Confirm the applicable specifications for the selected order configuration.
| Angled Physical Contact | 8° angled ceramic ferrule face |
|---|
| Flammability rating | UL94 V-0 |
|---|
Order length and any optional configuration are confirmed when quoting. The selected connector and fibre configuration is identified above.
Worldwide shipping
Worldwide shipping available. Shipping costs and delivery times are quoted separately.
