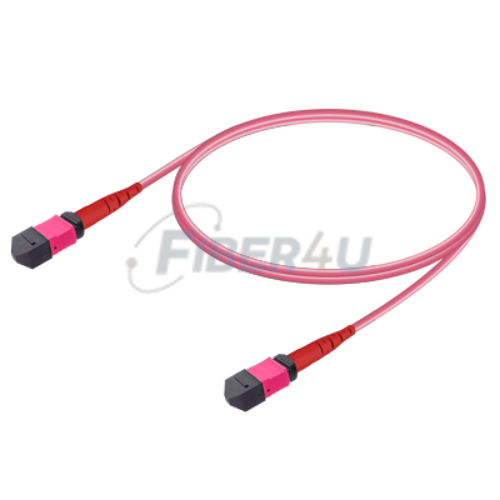

MPO Patch Cord Male-Male Base-24 MM OM4
MPO Patch Cord Male-Male Base-24 MM OM4 — mpo fibre optic cable. Provides a multi-fibre connection with the stated MPO interface, fibre count and connector gender. Match the mating interfaces and required cable configuration before ordering.
Product specifications
| SKU | FO-MP-10095 |
|---|
| Fibre type | Multi Mode (MM) |
|---|
| Fibre class | OM4 |
|---|
| Connector | MPO |
|---|
| Fibre arrangement | 24 |
|---|
| End configuration | Male-Male |
|---|
| Insertion loss (IEC 61300-3-4) | Average: 0.10 dB, Maximum: 0.35 dB |
|---|
| Return loss (IEC 61300-3-6) | ≥ 60 dB |
|---|
| Durability | >100 mating cycles |
|---|
| Flammability rating | UL94 V-0 |
|---|
| Operating temperature | -10°C to +70°C |
|---|
| Cable diameter | 3.0 mm |
|---|
| Brand | SAMM / Country of manufacture: Turkey |
|---|
Order length and any optional configuration are confirmed when quoting. The selected connector and fibre configuration is identified above.
