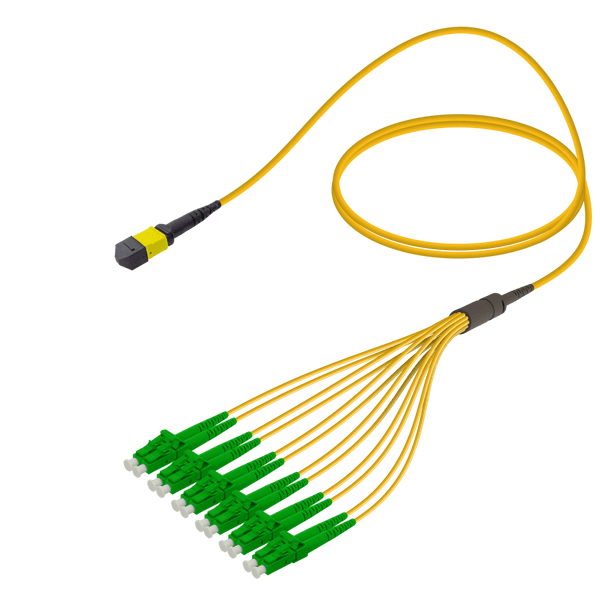

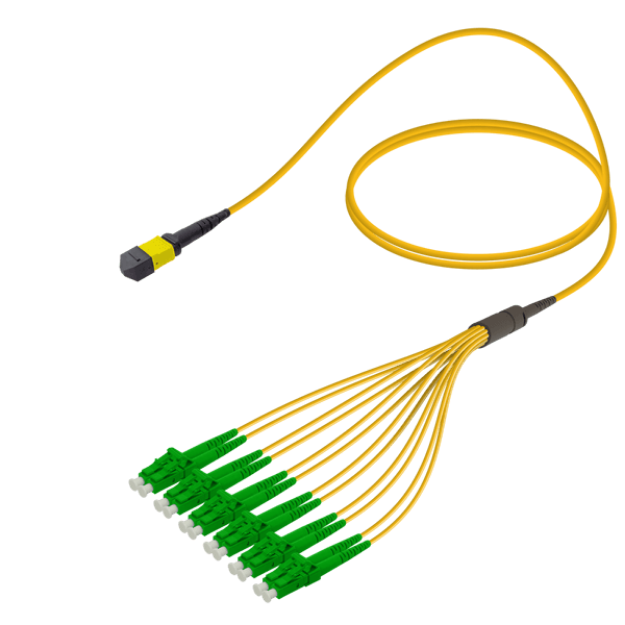

MPO Fiber Cable Female-LC/APC Base-12 SM
MPO Fiber Cable Female-LC/APC Base-12 SM — mpo fibre optic cable. Provides a multi-fibre connection with the stated MPO interface, fibre count and connector gender. Match the mating interfaces and required cable configuration before ordering.
Product specifications
| SKU | FO-MP-10150 |
|---|
| Fibre type | Single Mode (SM) |
|---|
| Connector | MPO – LC/APC |
|---|
| Fibre arrangement | 12 |
|---|
| Insertion loss (IEC 61300-3-4) | Average: 0.10 dB, Maximum: 0.35 dB |
|---|
| Return loss (IEC 61300-3-6) | ≥ 60 dB |
|---|
| Durability | >100 mating cycles |
|---|
| Flammability rating | UL94 V-0 |
|---|
| Operating temperature | -10°C to +70°C |
|---|
| Cable diameter | 3.0 mm |
|---|
| Brand | SAMM / Country of manufacture: Turkey |
|---|
Order length and any optional configuration are confirmed when quoting. The selected connector and fibre configuration is identified above.
Worldwide shipping
Worldwide shipping available. Shipping costs and delivery times are quoted separately.
