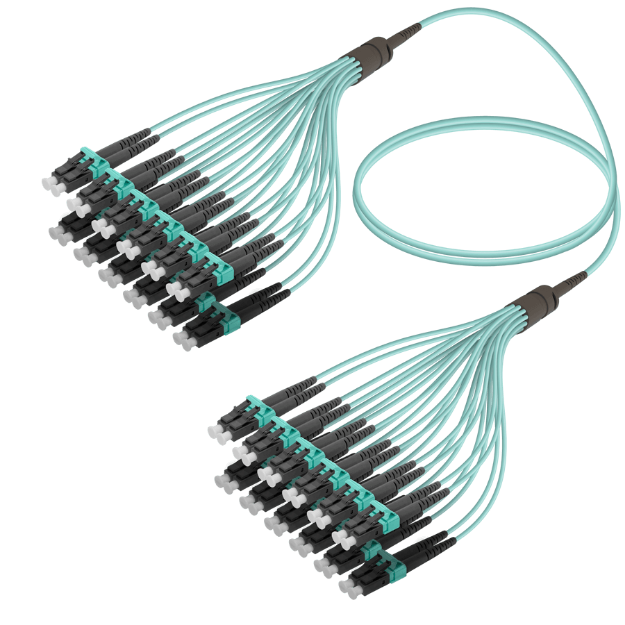

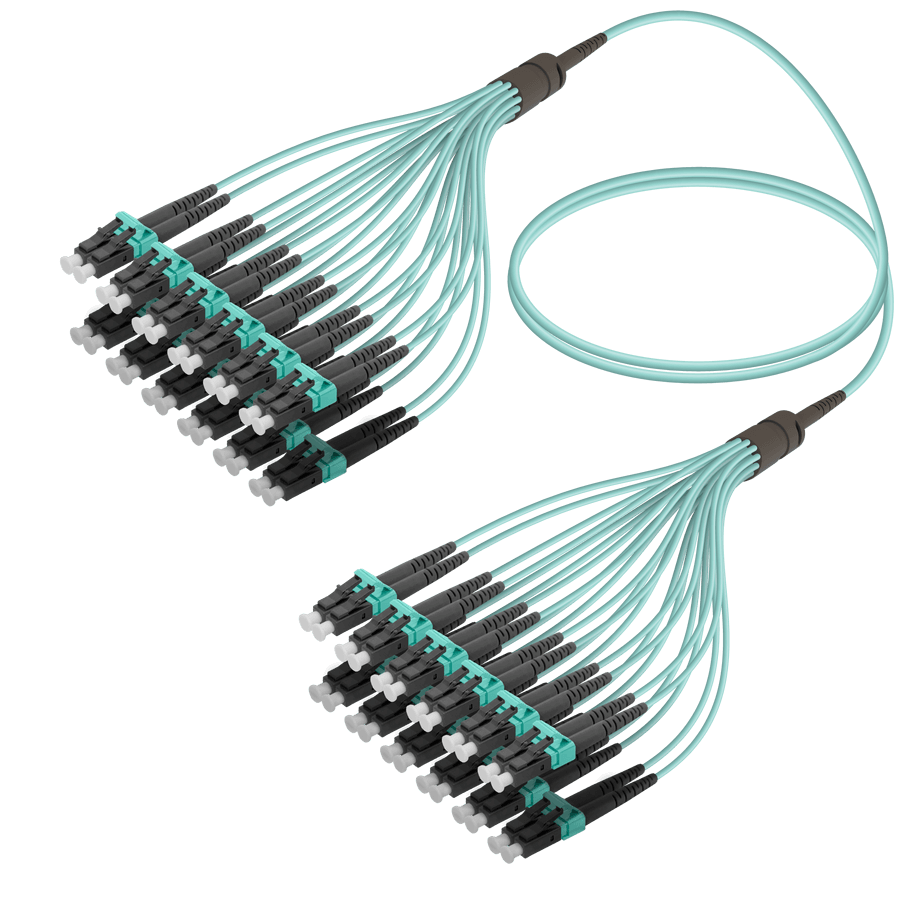

Fanout Cable LC/UPC-LC/UPC 24 Fiber MM OM3 – 3.0/1.8 mm
Fanout Cable LC/UPC-LC/UPC 24 Fiber MM OM3 – 3.0/1.8 mm — fibre optic fanout cable. Routes the stated number of optical fibres to individual connectorised legs. Connector ends and trunk/breakout diameters identify this configuration; other available configurations are separate products.
Product specifications
| SKU | FO-FP-10455 |
|---|
| Fibre type | Multi Mode (MM) |
|---|
| Fibre class | OM3 |
|---|
| Fibre count | 24 |
|---|
| Connector | LC/UPC |
|---|
| End connections | LC/UPC – LC/UPC |
|---|
| Trunk cable / fanout tube diameter | 3.0 / 1.8 mm |
|---|
| Brand | SAMM / Country of manufacture: Turkey |
|---|
| Insertion loss | ≤ 0.30 dB (IEC 61300-3-4-Method-B) |
|---|
| Return loss | ≥ 35 dB (IEC 61300-3-6-Method-B) |
|---|
| Operating temperature | -40°C to +85°C |
|---|
Additional technical details
Source-series details may include optional variants. Confirm the applicable specifications for the selected order configuration.
| Angled Physical Contact | 8° angled ceramic ferrule face |
|---|
| Flammability rating | UL94 V-0 |
|---|
Order length and any optional configuration are confirmed when quoting. The selected connector and fibre configuration is identified above.
