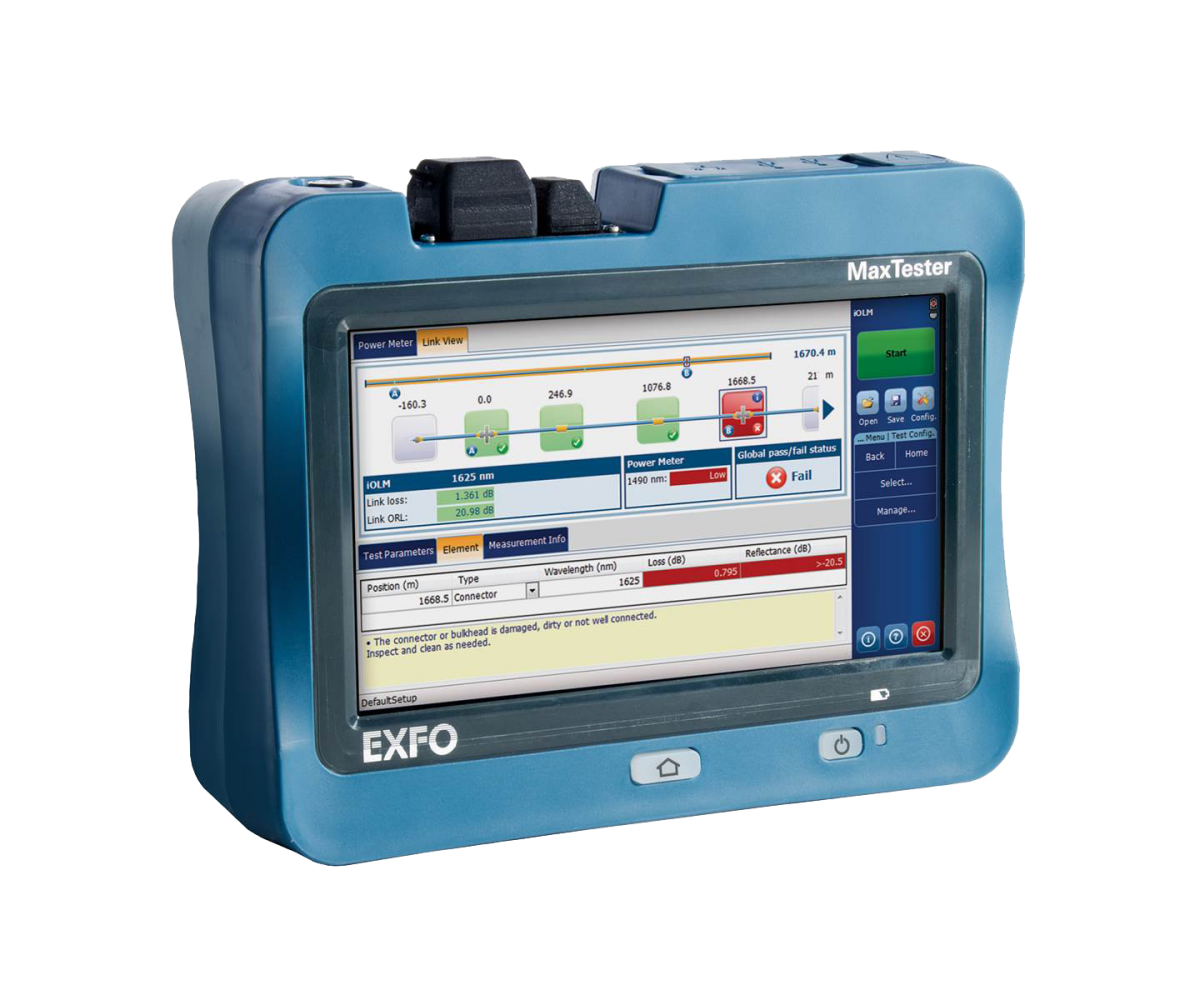

EXFO MAX-720C SM MM QUAD Fiber Test Device

EXFO MAX-720C Single Mode and Multi Mode QUAD Fiber Test Device

Product Code: MAX-720C-Q1-QUAD-EA-EUI-91

The MaxTester 720C Series is the first tablet-inspired OTDR series that is useful, lightweight, and rugged for any testing environment. With its 7-inch enhanced touchscreen, it provides an unprecedented user experience.

• EXFO MAX-720C is designed for testing Single Mode (SM) and Multi Mode (MM) fiber optic cables.
• Approximate measurement distance of 110 km with a 36 dB dynamic range.
• 7-inch touchscreen suitable for outdoor use.
• Provides accurate fiber characterization on first test with its effective dynamic range, ideal for private/corporate networks, data centers, and FTTx/PON (up to 1x32 splitter) networks.

Technical Specifications:

• Testing for FTTx/PON fiber lines.
• Approximately 110 km measurement distance with a 36 dB dynamic range (Single Mode).
• Wavelengths: 850/1300/1310/1550 nm.
• Dynamic Range: 27/29/36/35 dB.
• Measurement Distance: 0.1 - 40 km in Multi Mode, 0.1 - 260 km in Single Mode.
• Pulse Width: 3 - 1000 ns in Multi Mode, 3 - 20,000 ns in Single Mode.
• 2GB internal storage.
• 7-inch outdoor suitable touchscreen display.
• Support for Turkish and English languages.
• Optional Power Meter and Visual Fault Locator can be added.
• Weight: 1.5 kg.

Package Contents:

• 1 x EXFO MAX-720C
• 1 x Original Carrying Case
• 1 x Original Kit
