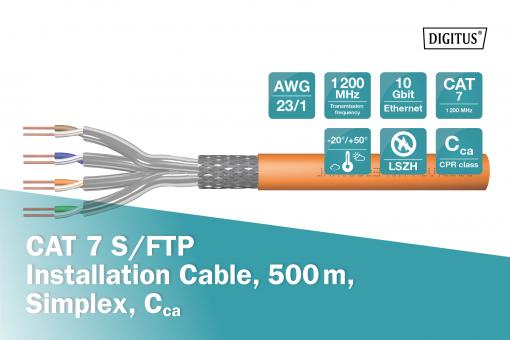

CAT7 S-FTP Copper Cable Indoor

DIGITUS CAT 7 S-FTP PiMF installation cable, raw length 500 m, drum, AWG 23/1, 1200 MHz, LSZH-1, simplex, color orange

Future-oriented standards and high-end quality for your network.

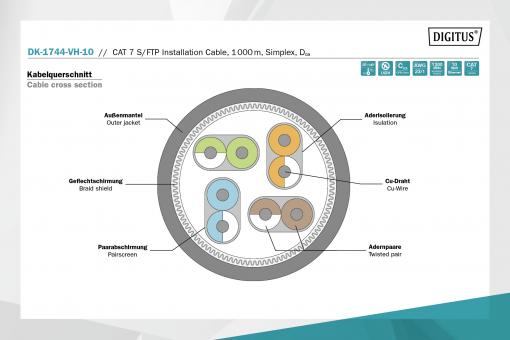

• PROPERTIES: Cat7 cable with 4x2 AWG 23/1 core diameter 0.57 mm twisted pair copper cables (Cu) – 1200 MHz bandwidth up to 10 Gbit/s 10GBase-T in accordance with IEEE 802.3 – External diameter 7.5 mm – Power over Ethernet (PoE, PoE+)

• QUALITY CHARACTERISTICS: LAN cable is shielded (S/FTP shielding with PiMF, pairs in metal foil) – Permanent link GHMT certified – Standards: ISO/IEC 11801, IEC 61156-5, DIN EN 50173-1/4, DIN EN 50288-4-1, EN 60332-1-2, EN 60754-1/2, EN 61034-2, EN 50174-2

• FIRE PROTECTION: Data cable corresponds to CPR Euro Class BauPVO Cca s1a d1 a1 in accordance with EN 50575 – LSZH halogen-free flame-retardant low smoke – With SFS-PE polyethylene outer sheath (0.60 mm thickness) color orange (RAL 2000)

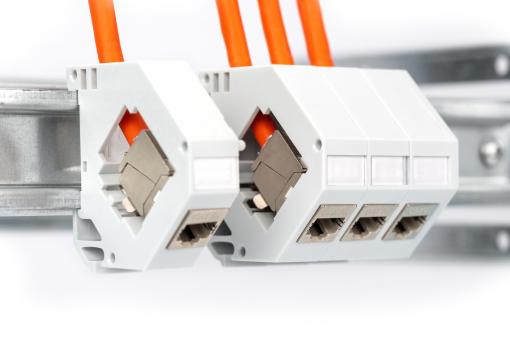

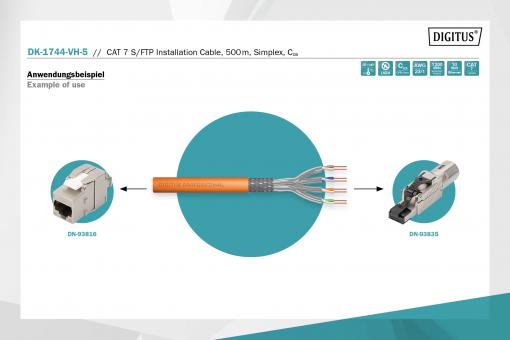

• INSTALLATION: Connection of network components (network socket, patch panel, Keystone module, RJ45 network plug) and network devices (WLAN repeater, LAN switch, PoE switch, splitter, access point, network router)

• APPLICATIONS: For universal network cabling in structures, offices, buildings, commerce, home, house, industry, cellar, warehouse, data center or apartment (network cable, DSL cable, Internet cable, TAE cable, phone cable)
