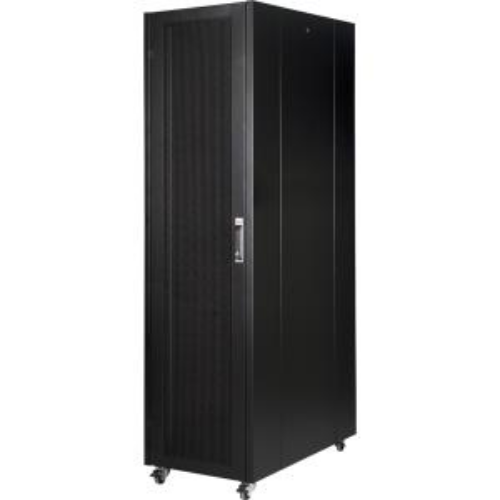

42U 600x1000 Server Rack

Proline 400 Series Server Cabinet Features

External Height: 2011 mm

Specifications:

• 26U/36U/42U/47U Width: 600 mm x Depth: 1000 mm
• Material: Modular screw-type multi-fold metal, finished with RAL 9005 Black Epoxy Polyester paint

Detailed Specifications:

• Perforated Front Cover: Available in heights of 26U, 36U, 42U, and 47U, with a depth of 1000 mm
• Locking System: Front perforated cover and rear perforated panel with a single-point locking cylindrical lock. Side panels are lockable from the outside, removable, and can be opened.
• Mounting Posts: 2 sets (4 pieces) of 19’’ device mounting posts that can slide along the depth at the front and back. Number markings are screen-printed on the device mounting posts.
• Cable Management: There is a micro-jointed cable entry section at the bottom and a cable entry area at the top with brush-type or plastic covers. If needed, a sliding cable transition panel can be installed for the bottom cable entry; this is supplied as an accessory.
• Ventilation: A mounting area for a top fan provides passive ventilation. A 2 or 4 fan module can be installed.
• Front Cover: 63% multi-fold monoblock metal perforated cover.
• Maximum Load Capacity: Up to 600 kg.
• Feet and Wheels: 4 M10 pin feet are included in the shipping configuration. A wheel kit can be installed if desired.

Quality Standards:

• ISO 9001:2015 Quality Assurance System
• ISO 14001:2015 Environmental Management System

Product Testing and Compliance Standards:

• TSE:EN 61587-1 Mechanical structures for electronic equipment - Tests for IEC 60917 and IEC 60297 series
• Cold, Dry, and Humid Temperature Tests: EN 61587-1/4.2, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-30
• Lifting Tests for Cabinets and Shelves: EN 61587-1/5.2.1
• Buckling Tests for Cabinets and Shelves: EN 61587-1/5.2.2
• Vibration and Mechanical Shock Tests for Cabinets: EN 61587-1/5.3.1, EN 61587-1/5.3.3, IEC 60068-2-6, IEC 60068-2-27
• Grounding: EN 61587-1/6.2
• Flammability: EN 61587-1/6.3
• IP Protection Class (IP Code): IP20, EN 61587-1/6.4 and EN 60529
• IK Protection Class (IK Code): IK07; TS EN 62262 (Old No: TS EN 50102+A1)
• Fire Classification: TS EN 13501-1+A1 Building materials and building elements, non-combustibility performance classification
• Corrosion Tests: TS EN ISO 9227 Corrosion tests in artificial atmospheres - Salt spray tests, minimum 1000 hours
• Cross-Cut Test for Paints and Varnishes: TS EN ISO 2409
• Measurement of Coating Thicknesses on Magnetic Metals: TS 2311 EN ISO 2178
• Restriction of Hazardous Substances Directive: 2011/65/EU – RoHS Compliance
• Information Technology Equipment Safety Standards: TS EN 60950-1 Section 1: General rules – CE Compliance
